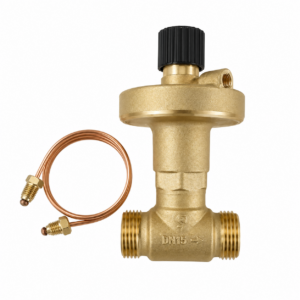

Danfoss AB-QM PICV DN15 – HIU Pressure Independent Control Valve – 003Z1252

The Danfoss AB-QM DN15 Low Flow is a pressure independent balancing and control valve (PICV) designed to combine flow limitation, differential-pressure control and control-valve functionality in one valve body. For the AB-QM 3.0 DN15 Low Flow version, Danfoss specifies a nominal flow of 0.275 m³/h (275 l/h), G 3/4 A external-thread connections, M30 x 1.5 actuator connection and a minimum operating differential pressure of 16 kPa. Danfoss supplies this valve both with and without test plugs.
